Raymarine Axiom 2 RV 12" Chartplotter/Fishfinder w/RealVision 3D Sonar, Lighthouse North America Chart & RV-100 Transducer
- In stock, ready to ship
- Inventory on the way

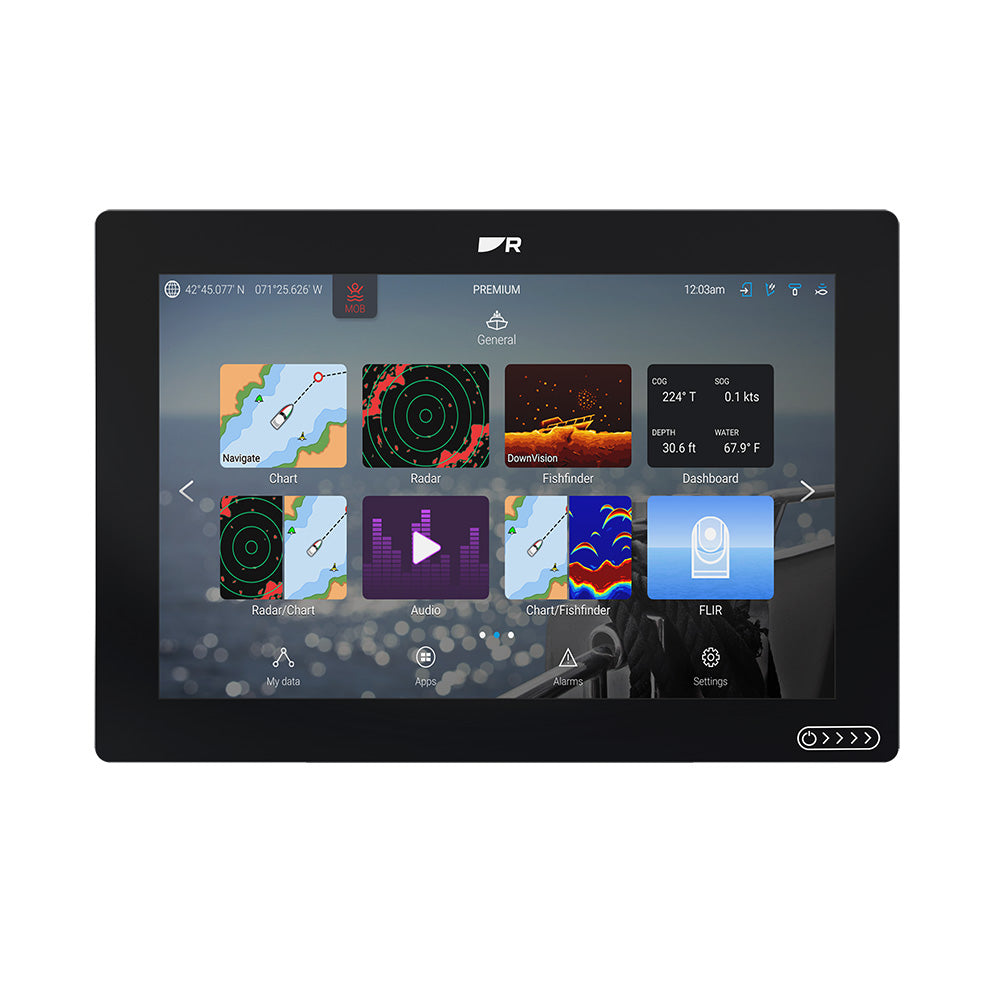

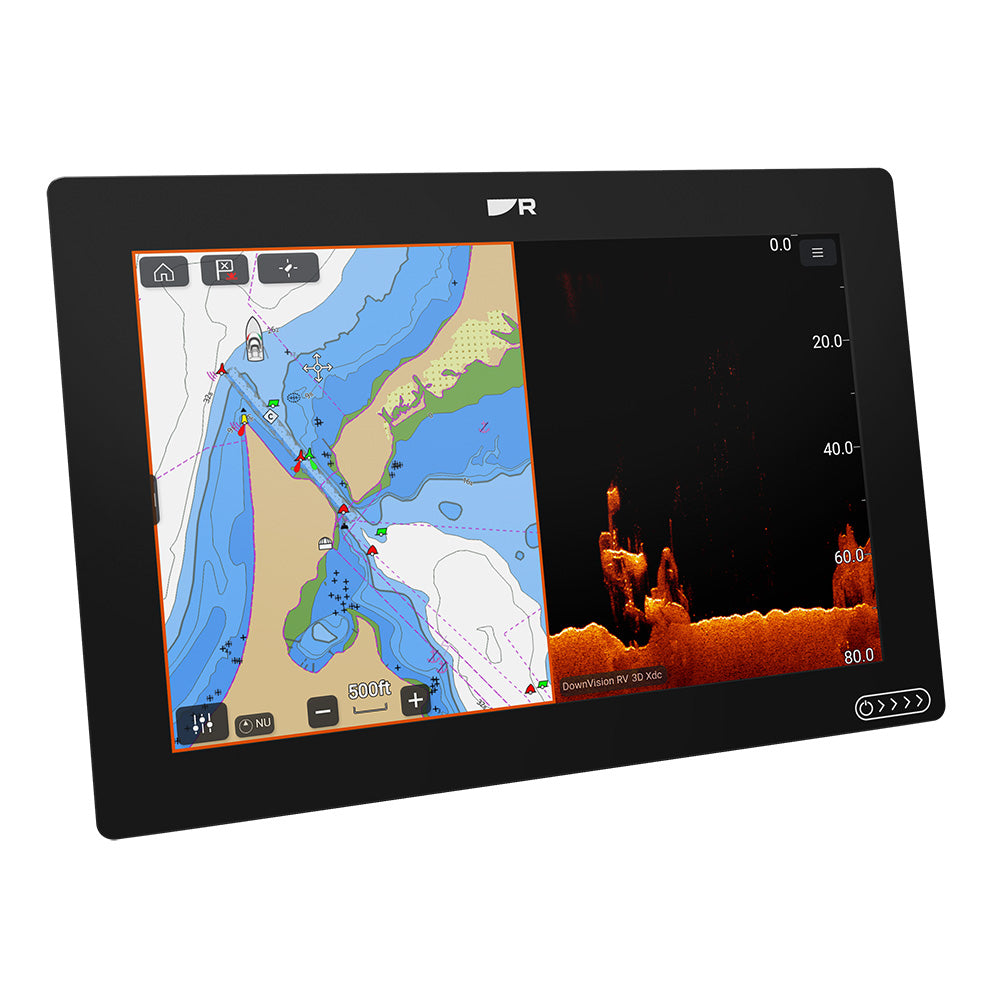

Axiom 2 RV 12" Chartplotter/Fishfinder with RealVision 3D Sonar, Lighthouse North America Chart & RV-100 Transducer
Axiom 2 is the next generation of the award-winning Raymarine Axiom chartplotter product line. Featuring a powerful 6-core processor, rugged HydroTough™ displays, and expanded app and engine integration, Axiom 2 delivers a faster, more intuitive, and more responsive navigation experience for leisure boaters of all kinds. Designed for sailors, anglers, cruisers, and motor-yacht owners, Axiom 2 combines next-level performance with Raymarine’s signature durability and ease of use.
See More Below the Surface with RealVision Fish Finder
Scan wider, see deeper and understand the bottom instantly with SideVision™, DownVision™, RealVision™ 3D, and 600W CHIRP sonar - all built in. With an all-in-one GPS chartplotter with fish finder, you can spot fish faster, view underwater structure clearly, and fish confidently from every angle.
RV-100 Transducer
Raymarine’s RV-100 All-In-One Transom Mount Transducer lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-100 is a 4-channel, Wide Spectrum CHIRP transducer with DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ sonar inside. The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes 3D sonar imagery, automatically compensating for vessel motion. You’ll enjoy an accurate and life-like model of the underwater environment that filters out distortions caused by waves, swells, or vessel maneuvering. The RV-100 also has a built-in fast-response water temperature sensor for quick, accurate readings.
The RV-100 is designed for easy transom mounting on outboard-powered motor boats. It features a rugged, marine-grade stainless steel mounting bracket with an integrated kick-up to prevent damage in the event of a strike with floating debris, rocks, or stumps.
For bass boats, flats boats, and skiffs, an optional stainless Jack-Plate mounting bracket (A80480) and spacer kit (A80482) are available. The RV-100 can also be mounted onto stepped hull vessels using the optional stainless steel step-mounting bracket (A80479, sold separately.)
Features:
- Rugged all-weather, marine-ready design backed by a 3-year warranty.
- 6-core processor delivers faster chart rendering, quicker startups, and smoother networking and video performance.
- 7, 9, and 12-inch HydroTough™ IPS touchscreen displays, with high brightness (up to 1,800 nits) for all-day visibility.
- Powered by LightHouse OS with an intuitive interface and access to over 30 LightHouse apps.
- RayNet Gigabit Ethernet for high-speed integration of radar, cameras, sonar, and accessory devices.
- 64 GByte of onboard storage for apps, charts, video, and user data.
- Broad chart compatibility, including LightHouse Charts Gen 2, Navionics, C-MAP, and more.
- Built-in high-performance GPS / GNSS with fast 10 Hz position updates.
- Smart vessel monitoring and control, including engine integration, NMEA 2000, and digital switching support.
Technical Specifications:
- Dimensions (Trunnion mounted) - 12.36" (W) x 8.93 (H) x 7.01" (D)
- Dimensions (Surface / Flush mounted) - 12.36" (W) x 8.54" (H) x 7.01" (D)
- Voltage - Nominal: 12 V DC / Operating range: 8 to 16 V DC
- Power Consumption (max) - 18.96W
- Inline fuse / thermal breaker rating - 7A
- Size & Type - 12.1" (diagonal), IPS
- Resolution - WXGA 1280 x 800
- Brightness/luminance - 1800 bits / 1800 cd/m²
- Protective Coating - HydroTough™ (Oleophobic)
- Transducer - 1x 25-pin RealVision connector
- NMEA 2000 / DeviceNet - 1x DeviceNet male connector (on power cable) (LEN rating: 1)
- Network - Wired: 1x RayNet (10 / 100 / 1000 Mbit/sec Ethernet), WiFi: 1x 802.11 b / g / n, Bluetooth: v4.0
- GNSS - Internal GNSS receiver: GPS / GLONASS / BeiDou (incl. SBAS) (Cold start: <2 minutes) (10 Hz refresh rate)
- Internal Storage - 64 GByte (Solid State)
- External MicroSD storage - 1x MicroSDXC card slot
- Sonar Channels (Output power / Responsive Frequency Range) - RealVision 3D: (70 W / 350 kHz ± 5%), SideVision: (70 W / 350 kHz ± 5%), DownVision: (35 W / 350 kHz ± 5%), CHIRP High: (100 W / 200 kHz ± 5%)
Quick Specs
| Cartography Brand | Navionics/C-Map |
|---|---|
| Included Transducer | A80464 |
| Screen Size | 12" |
| Touchscreen | Yes |
| Transducer Included | Yes |
