Facnor FX+1500 Flying Sail Furler w/Ratchet
- In stock, ready to ship
- Inventory on the way
FX+1500 Flying Sail Furler with Ratchet
Further to constructive technical exchanges with ocean racers, Facnor has developed for over 20 years a sophisticated range of Gennaker/Code Zero furlers: the FX+. These furlers are known to be light, easy to fit, and aesthetic. Also, this furler is reliable for cruising or racing.
Features:
- Adapted to sailboat from 10 to 12m (30 to 40 ft.)
- Code sail surface of 60m²/ 646ft² maximum (max 20m² / 215ft² staysail)
- Ratchet option Start & Go included (working both clock or anti-clockwise)
- Unique captive quick-release pin
- Possible conversion for asymmetric Spinnaker
- Composite/carbon housing
- Maintenance-free units (sealed bearings)

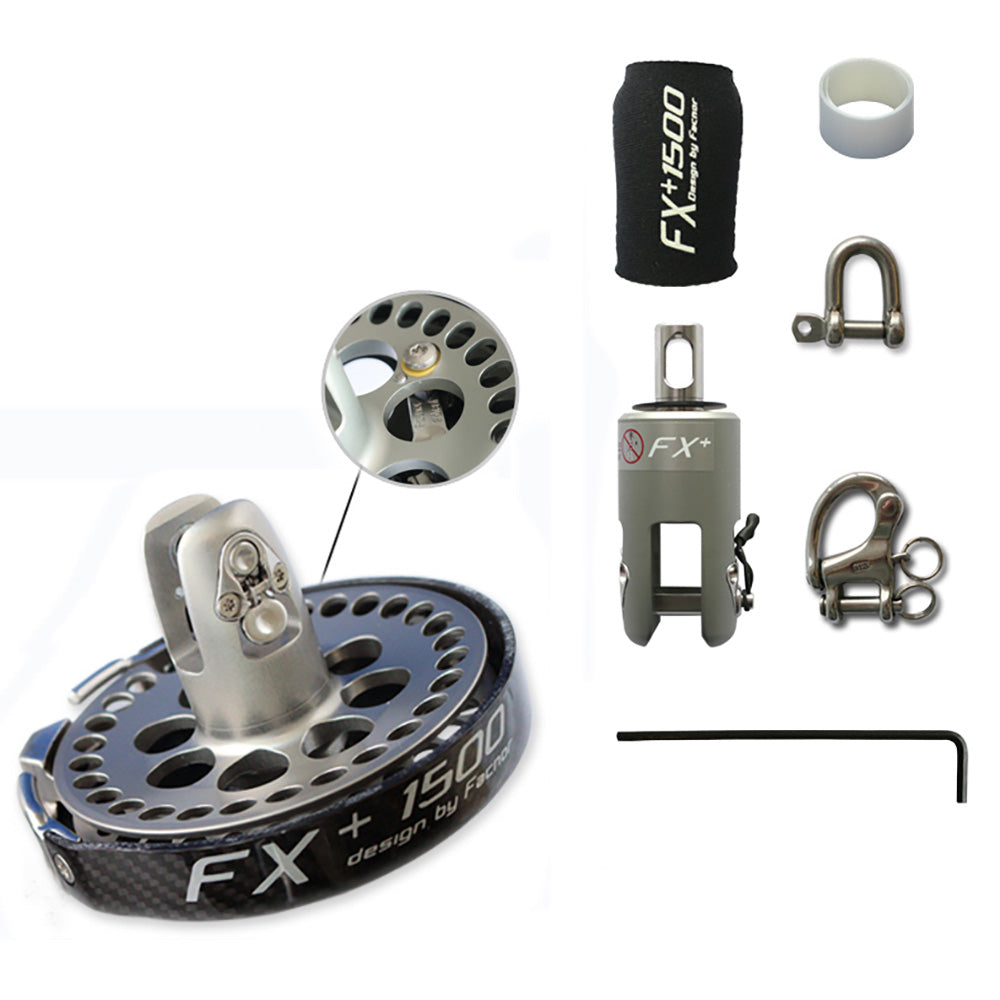

The Standard Kit of the FX+1500 Furler Includes:
- A ratchet in s/s duplex enabling a temporary stop when furling in and a self-locking both clockwise and anti-clockwise (Facnor patent)
- One continuous line drum in anodized aluminum and CNC machined in a solid block, protected by a composite/carbon housing, low-profile drum
- One swivel also in anodized aluminum and CNC machined in a solid block, including a neoprene anti-impact cover with high-visibility marking
- One snap shackle as the bottom drum attachment (Optional SSH+900/1500 solid sheave as an alternative)
- One shackle as the top swivel attachment (optional FRX900/1500 2-to-1 friction ring as an alternative)
Offers Comfort in Sail Handling, Reliability, and Easy Manipulation:
- Monoblock's conception of the mechanisms for more sturdiness and long-lasting
- Intuitive manipulation to connect the sail to the mechanisms thanks to a fitted-in, compact, and unique captive quick-release pin
- Bottom drive unit with a largely dimensioned diameter for strong torque and therefore more comfortable handling
- Is rotation transmitted through an anti-torsion luff rope? optional—sliding inside the luff tape and fitted with a thimble on each end (FCI1500 s-s thimbles and FRC s-s clamps are also available)
- Optimize the investment by converting the furlers for use with the asymmetric spinnaker; just add a FAST top-down thimble
Specifications:
- Weight: 0.98 kg
- Sailboat Length (feet): 30'-40'
- Code Sail Area (m²): 60,00
- Code Sail Area (ft²): 646,00
- Staysail Area (m²): 20,00
- Staysail Area (ft²): 215,00
- Safe Working Load (tons): 1,50
- Standard Top Swivel Attachment: Shackle
- Standard Bottom Drum Attachment: Snapshackle
- Ratchet Option: Included
- Continuous Line Drum Ø: 109,00mm
- Spliced Furling Line Ø: 8,00mm
- Warranty: 3 years
*Optimize the investment by converting the furler for use with an asymmetric spinnaker; just add the FAST 1500 top-down thimble.
